Additional information
| Weight | 0.75 kg |
|---|---|
| Dimensions | 24.5 × 17.5 × 6.2 cm |
HDMI in HD recorder/streamer save to USB/SD, stream to IP (Avonic)
$1,669.00
Due to high demand stock is limited and there may be shipping delays (Please call us to check)
Recorder & Encoder with HDMI & SDI input

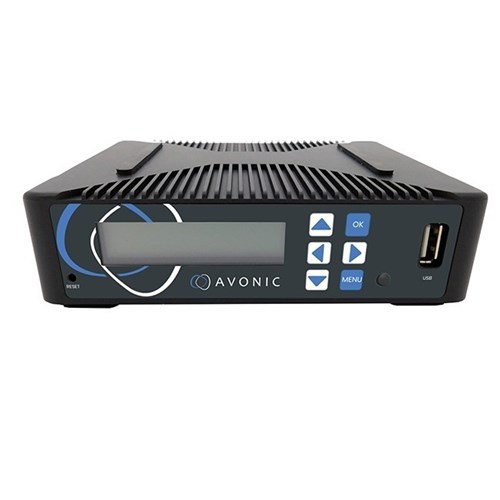

The Avonic AV-REC200 is the ideal standalone USB and SD Card recorder and web/streaming device. Users can simply connect an HDMI or SD/HD-SDI input and in a few simple steps, they will be streaming and/or recording. With support for UDP/HLS/RTMP/RTSP live output and USB/SD card recording the REC200 it enables corporate streaming, live streaming to various platforms and live high bitrate full HD 1080P60 recording.
A simple to use webinterface and IP control enable ease of use and full integration with 3rd party control systems.
Features

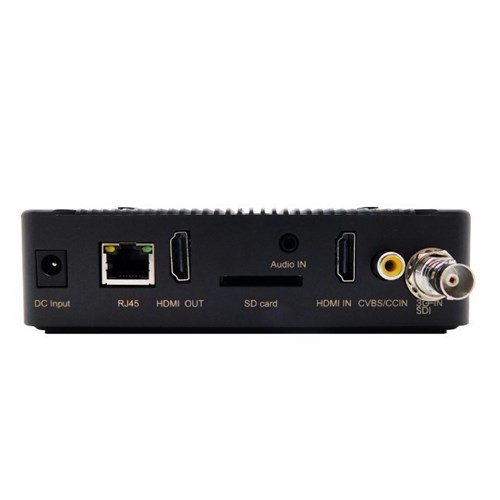

- Inputs:Â HDMI, 3G-SDI
- Outputs:Â HDMI Out, USB storage, SD-card storage, RTSP via RJ45
- High Definition input resolutions up to 1080p60
- Live streaming to various platforms inlcuding Facebook Live and Youtube
- H.264, H.265 encoding
- Front panel screen with status, setup and control capabilities
- Live Meeting Broadcasts
- Logo overlay
- full ip control via webinterface
- H.264/ H.265 video coding
Specifications
- Input: 1x HDMI, 1x 3G-SDI
- Output: 1x USB2.0
- Output Formats: 1920×1080, 1680×1200, 1600×900, 1440×1050, 1440×900, 1360×768, 1280×1024, 1280×720, 1280×800, 1280×768, 1024×768, 1024×576, 960×540, 850×480, 800×600, 720×576, 720×540, 720×480, 720×404, 704×576, 640×480, 640×360, 480×270, Automatic 20~60fps
- Input Formats: up to 1080p60
- Audio: MPEG-1 Layer II, AAC, AC3, EAC3 (Dolby Digital Plus)
- Video Bitrate: 0.6 ~ 20 Mbps
- Video Resolution: 1080×1920
- Video Frame Rate: max 60fps
- Audio Bitrate: 32~384 kbps
Streaming output
- Protocols: UDP, RTSP, RTMP, RTMPS, HLS
- Platforms: Facebook Live, Youtube and other platforms supporting the protocols above
- Video Coding Standard: H.264 BP/ MP/ HP – H.265 MP
- Max. resolution stream: 1920x1080p60
General specifications
- Input voltage: DC12V1A
- Power consumption: 9W
- Power supply: 12V1A
- Power connector: EIAJ-3 – Phimore 275 plug
- Operating temperature: 10°C ~ 40°C
- Storage temperature: -20°C ~ 60°C
- Operating humidity: 20% ~ 90% RH (non-condensation)
- Colour: Black
- Dimensions product: 144 x118 x 38mm
- Weight product: 0.300 kg
- Dimensions box: 245mm x 175mm x 62mm
- Weight box: 0.750 kg
- Included: AV-REC200, AV-PSU200
